Note: before installation, you must first read the instruction.

The notice of the use of equipment!!!

Must first go through debugging before 1 equipment put into use, the normal debugging and put into use before (before the fixed machine must first good debugging, to avoid inconvenience);

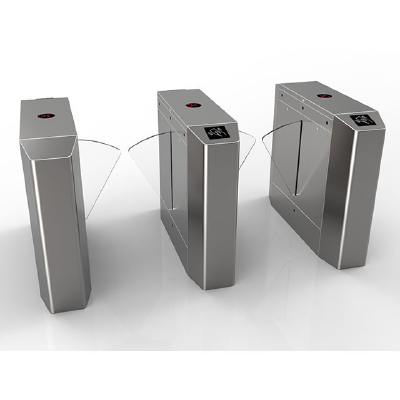

2 mounted on the machine (multi channel please be sure to follow the outside of the cabinet machine scheduling letter prompting the next on the other side, A1-A2-A3-A4 side a1-a2-a3-a4 or it will cause inconvenience), find a channel on both sides of the corresponding terminal, corresponding identification terminals (1-1, 2-2... According to the order from top to bottom) good docking line (A - A, online B B, a two channel machine, and then connected) debugging, the device is powered on, prohibited to stand in the channel, do not let the infrared sensor is shielded. For the convenience of understanding, please refer to the following standard wing gate swinging gate product legend. (customer orders, the channel width if there are changes to the actual changes in the size of the standard)

3 after power on, wing gate will be shut off, that is zero, there will be about swinging gate gate after the action of rzl, namely the closing state, the process for the last two machine self-test, two seconds after the buzzer automatically in the process do not cover infrared, do not stand in the channel;

4 if the self test after the alarm, or not to return to zero according to the following content to be properly adjusted.

1) infrared is not on, check whether the infrared is on both sides, under normal circumstances, an infrared transmitter (two cores) light lit, the receiver (three cores) often destroyed, if the receiver is often bright, said the transmitter and the infrared receiver is not aligned, can be adjusted to infrared the alignment

2) opening or closing the motor, the first investigation of the limit switch is induced into the bottom of the iron to induction light lit, if not sensed, the indicating lamp is often destroyed. If the sensor is placed below the limit switch 1-2mm, and then at zero or battery power supply, so that it is in the open position, so that the sensor is in the middle of the middle position after fixing it. If the limit switch is normal, check whether the motor line is back;

5 self normal, need to take a card reader (read head) or control board, control board connected by gate signal line SW1 and SW2 of the two signal lines can be passive (dry contact signal, short circuit signal) about the direction you can customize, to determine whether the answer to the direction you want, according to the direction indicator or by hand on the edge of a pair of infrared induction to determine (if the direction is wrong, is retrograde, closed, left hand brake opportunity) opportunity to open the gate for infrared in the right direction by / again.

6 if the machine has been debugged, please observe the following points when using:

If you do not set the channel in the channel to comply with the principle of credit card, the card reader need to read the first 1-2 seconds;

Please do not reverse the passage, the gate machine has anti retrograde function (reverse closed), may be caught;

Through the gate, not crowded, people should maintain a certain distance between people;

Do not follow, strictly follow one person one card principle, the gate machine has anti trailing function, the following may be caught. Do not read card, and quickly through the gate;

Children under the height of less than 1m should be under the care of adults through;

In the direction of the direction indicator light is not turned into a green and open the gate, no access to the channel;

When pedestrians pass through the passage, do not stay in the channel for a long time;

Equipment should be properly managed when not working, no percussion, shaking equipment;

When the device is in the closed state, is strictly prohibited to push and pull or impact the gate;

The products are in use, is strictly prohibited to sit or beat in the wing of the pendulum rod, so as to avoid unnecessary damage to the gate;

It is suggested that the machine is in a conspicuous place to mark the passage of the machine to guide the safety and orderly passage of the gateway through the gateway.

Note: This product is used with a dangerous voltage, should be regularly inspected and maintained, so as not to damage the equipment and other equipment users.

The equipment installation and commissioning

1 equipment installation

1) ready to install equipment tools (hammer drill, expansion screws, active wrench, six angle wrench set, screwdriver, electric glue, cut wire inlay) and according to the packing list inventory parts;

2) make clear the system composition and working mode, carry on the overall plan, prepare to start the installation;

3) the installation of equipment foundation base, the equipment arrangement in place;

4) fixed hole, drill hole, the anchor bolt and embedded M12 or expansion bolt;

5) the power cables and cable respectively with weak 3/4 "PVC line pipe wear, and buried the corresponding position with cement;

6) the case were moved to the corresponding installation position, each anchor bolt position alignment;

7) check the system composition and working mode is correct, check the correct, and then carry on the next step;

8) open the case door, choose one of the equipment as a reference benchmark (preferably in the middle of a table as a reference).

Reference), the base bolt hole alignment bolt corresponding, and pre tightening nut;

9) to open a door to the adjacent chassis, frame anchor bolt and bolt hole alignment benchmark equipment alignment has been set, the pre tightening nut; if more than one need to install and so on;

10) refer to the wiring diagram, the power line and control line connected components are connected with the gates themselves [control panel has received good, just need to find a host with circuit board and the corresponding channel side machine --- (gates have double movement according to the motor and other components to determine whether the composition of the same channel)], with 0.5MM online line (limited available cable instead of, but need to use double line) in terminal (with copper screws black pillars) from top to bottom connected (via one), according to the site and then in the gate plate (SW1, SW2 to open the door into (to)
