1 equipment introduction

1.1 brief introduction

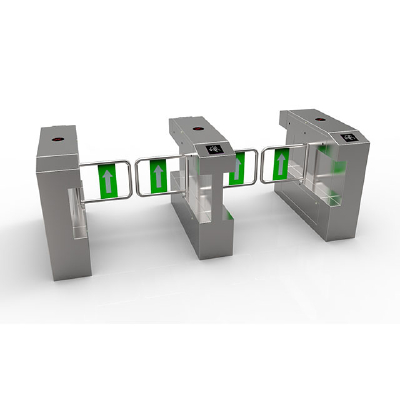

Channel gate is my company after years of development, production of intelligent channel management equipment. The equipment will be mechanical, electronic, microprocessor control and a variety of reading and writing technology organically integrated. By configuring a variety of reading and writing equipment, the use of reliable performance of the security device and real-time alarm system and direction of the interface, to coordinate the implementation of intelligent control of the channel and management.

The equipment adopts stamping forming of stainless steel plate shape, beautiful appearance, anti rust, durable, and external standard electrical interface, can easily be barcode card, ID card, IC card reader integrated in the equipment, provide civilized, orderly traffic to and from personnel, but also can prevent illegal entry of personnel; in addition the system is specially designed to meet fire safety requirements, in the event of an emergency, to ensure the timely evacuation of personnel channel smoothly, convenient.

1.2 functional characteristics

1) with zero self test function, to facilitate the maintenance and use of users;

2) illegal entry with alarm function;

3) erosion prevention function, in the absence of the received gate signal, the telescopic baffle (ARM) automatic lock;

4) infrared / mechanical double pinch function, the telescopic baffle (ARM) resistance reduction process, within the prescribed period of time the motor stop working automatically, and the intensity is very small, and send out alarm signals;

5) with automatic reset function, after reading the effective card, if the system is not in the passage of time, the system will automatically cancel the pedestrian access;

6) unified standard external electrical interface, can be connected with a variety of card reader, and through the management of computer remote control and management;

7) the whole system runs smoothly, the noise is small;

1.3 main technical parameters

1) supply voltage: AC220 10% V, 50HZ

2) drive motor: DC motor 24V/40W

3) working environment temperature: -15OC - 60 OC

4) relative humidity: relative humidity is less than 90%, no condensation

5) input interface: 12V level signal or pulse width > 12V 100ms pulse signal drive current > 10mA

6) communication interface: RS232 communication,

7) the communication distance is less than 10 meters.

8) channel width: Wing gate 600mm swing gate single pole long 600-900MM

(9) traffic speed: 30 person / minute (normally open mode), 20 person / minute (normally closed mode)

10) the gate opening and closing time: the wing gate 0.8 seconds, swing gate 2 - 1 seconds
